Layout For Post-packaging Production Line
The post-packaging section is a critical component of a fully automated frozen food production system. It ensures efficient handling, boxing, sealing, and palletizing of products after freezing. This layout is designed to optimize workflow, maintain food safety standards, and reduce labor costs through automation.
Key Features That Support Khinkali Formation:
🔄 Workflow Overview
- Product Alignment & Inspection
Products exit the spiral freezer or IQF tunnel.
Conveyed through multi-lane alignment belts.
Integrated with metal detectors and checkweighers to ensure food safety compliance.
- Automatic Bagging or Tray Packing
Dumplings or buns are automatically counted and packed into plastic bags or thermoformed trays.
Heat-sealing or lidding is performed immediately after packing.
- Box or Trays Packing System
Packed units are grouped and placed into corrugated cartons using automatic case packers.
Cartons are sealed using either hot-melt glue or adhesive tape.
- Labeling & Traceability
Barcode printers and automatic label applicators are installed.
Real-time integration with MES/ERP systems for production tracking and inventory control.
- Robotic Palletizing
Cartesian or 6-axis industrial robots stack cartons on pallets in pre-defined patterns.
Optional pallet dispenser and slip sheet applicator can be integrated.
- Cold Storage Entry / AGV Transfer
Completed pallets are transferred to the cold storage area via conveyors or AGV robots.
Ready for logistics or temporary warehousing.
🔧 Layout Configurations
Depending on factory space and automation level, the layout can follow different patterns:
- Linear Layout: Efficient for large-scale production with clear one-way material flow.
- L-shaped Layout: Space-saving, suitable for medium-sized workshops.
- U-shaped Layout: Compact and ideal for operators to supervise both start and end points.
-
![Collaborative Packing Robot Workstation]()

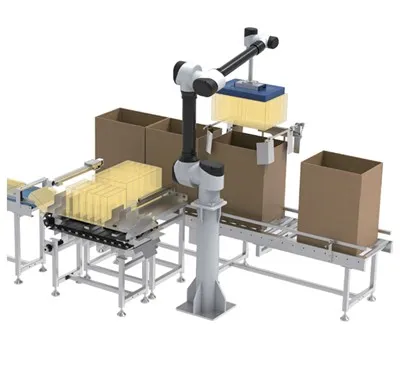

Collaborative Packing Robot Workstation— Automated End-of-Line Carton Loading for Frozen Dumpling Production ✅ Boost Efficiency | ✅ Reduce Labor | ✅ Seamless Line Integrationread more -
![RCP1300B Intelligent Robotic Arm Cartoning Machine]()
RCP1300B Intelligent Robotic Arm Cartoning MachineThe RCP1300B Intelligent Robotic Arm Cartoning Machine is a cutting-edge, modular cartoning solution designed for high-speed, precision packing of soft and hard bag materials into boxes with...read more -
![Servo Robotic Arm Carton Making Machine]()
Servo Robotic Arm Carton Making MachineThe Servo Robotic Arm Carton Making Machine is a highly automated and compact solution designed to streamline carton forming processes in various industries. Featuring a servo-driven robotic arm,...read more -
![Automatic Carton Sealing Machine]()
Automatic Carton Sealing MachineThe FX500 Automatic Carton Sealing Machine is a compact, efficient solution designed for sealing a wide range of box sizes with consistent, secure performance. Suitable for standalone use or as...read more -
![Intelligent Palletizing Robot]()
Intelligent Palletizing RobotThe WP-20 Palletizing Robot is a high-performance 4-axis robotic solution engineered to automate palletizing tasks with unmatched precision, speed, and stability. Designed for heavy-duty...read more
